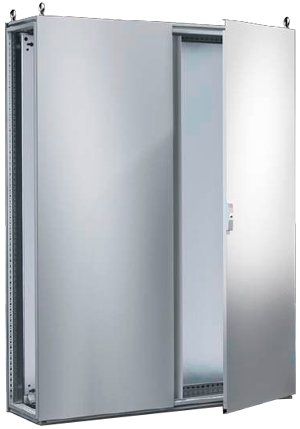

Armarios Autosoportados TS8

  • Gabinete autosoportado en acero al carbón
Anchura Altura Profundidad No. de parte Paredes laterales (2 pzas) Zocalo frontal altura: 100 mm (2 pzas) Zocalo lateral altura: 100 mm ( 2 pzas)
1000 2000 500 8005.500 8105.235 8640.005 8640.032
1000 2000 600 8006.500 8106.235 8640.005 8640.033
1000 1800 400 8004.500 8184.235 8640.005 8640.031
1200 2000 500 8205.500 8105.235 8640.007 8640.032
1200 2000 600 8206.500 8106.235 8640.007 8640.033
1200 2000 600 8206.500 8106.235 8640.007 8640.033
1200 2000 800 8208.500 8108.235 8640.007 8640.034
1200 2200 600 8226.500 8126.235 8640.007 8640.033
1200 1400 500 8245.500 8145.235 8640.007 8640.033
1200 1800 400 8284.500 8184.235 8640.007 8640.031
1200 1800 500 8285.500 8186.235 8640.007 8640.032
1200 1800 600 8286.500 8186.235 8640.007 8640.033
- - 600 1600 636 8666.500 -
600 2000 600 8606.500 8186.235 8640.007 8640.033
600 1800 400 - 8184.235 8640.002 8640.032
600 1800 500 8685.500 8185.235 8640.002 8640.032
600 1800 600 8686.500 8186.235 8640.002 8640.033
800 2000 400 - 8104.235 8640.003 8640.031
800 2000 500 8805.500 8105.235 8640.003 8640.032
800 2000 600 8806.500 8106.235 8640.003 8640.033
800 2000 800 8808.500 8108.235 8640.003 8640.034
800 2200 600 8826.500 8126.235 8640.003 8640.033
800 1800 400 8884.500 8184.235 8640.003 8640.031
800 1800 500 8885.500 8185.235 8640.003 8640.032
800 1800 600 8886.500 8186.235 8640.003 8640.033
800 2000 600 8986.500 8186.235 8640.003 8640.033
