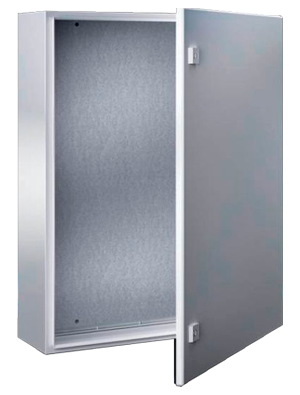

Armarios Ensamblables VX25
- 3 Anchuras: 600, 800, 1200 mm.
- 6 Alturas: 1200, 1400, 1600, 1800, 2000, 2200 mm.
- Armarios ensamblables
- Grado de protección hasta IP55, IP 66
| Altura | Anchura | Prof. | Acero al Carbón | Acero Inoxidable | Puerta transparente | Zócalos d/t 100mm | Zócalos lat. 100mm |
| 1,200 | 600 | 500 | 8615.000 | – | – | 8640.002 | 8640.032 |
| 1,200 | 800 | 500 | 8815.000 | – | – | 8640.003 | 8640.032 |
| 1,200 | 1,200 | 500 | 8215.000 | – | – | 8640.007 | 8640.032 |
| 1,400 | 600 | 500 | 8645.000 | – | – | 8640.002 | 8640.032 |
| 1,400 | 800 | 500 | 8845.000 | – | – | 8640.003 | 8640.032 |
| 1,400 | 1,200 | 500 | 8245.000 | – | – | 8640.007 | 8640.032 |
| 1,600 | 600 | 500 | 8665.000 | – | – | 8640.002 | 8640.032 |
| 1,600 | 800 | 500 | 8865.000 | – | – | 8640.003 | 8640.032 |
| 1,600 | 1,200 | 500 | 8265.000 | – | – | 8640.007 | 8640.032 |
| 1,800 | 600 | 400 | 8684.000 | – | – | 8640.002 | 8640.031 |
| 1,800 | 800 | 400 | 8884.000 | 8454.000 | – | 8640.003 | 8640.031 |
| 1,800 | 1,000 | 400 | 8084.000 | – | – | 8640.005 | 8640.031 |
| 1,800 | 1,000 | 500 | 8080.000 | – | – | 8640.005 | 8640.031 |
| 1,800 | 1,200 | 600 | 8284.000 | 8456.000 | – | 8640,007 | 8640.031 |
| 1,800 | 600 | 500 | 8685.000 | 8457.000 | – | 8640.002 | 8640.032 |
| 1,800 | 800 | 500 | 8885.000 | 8455.000 | – | 8640.003 | 8640.032 |
| 1,800 | 800 | 500 | 8880.000 | – | – | 8640.003 | 8640.032 |
| 1,800 | 1,200 | 500 | 8285.000 | 8453.000 | – | 8640.007 | 8640.032 |
| 1,800 | 400 | 600 | 8486.000 | – | – | 8640.001 | 8640.033 |
| 1,800 | 600 | 600 | 8686.000 | – | – | 8640,002 | 8640.033 |
| 1,800 | 800 | 600 | 8886.000 | – | – | 8640,003 | 8640.033 |
| 1,800 | 800 | 600 | 8881.000 | – | – | 8640,003 | 8640.033 |
| 1,800 | 1,200 | 600 | 8286.000 | – | – | 8640,007 | 8640.033 |
| 2,000 | 600 | 400 | 8604.000 | – | – | 8640.002 | 8640.031 |
| 2,000 | 800 | 400 | 8804.000 | – | – | 8640.003 | 8640.031 |
| 2,000 | 1,000 | 400 | 8004.000 | – | – | 8640.005 | 8640.031 |
| 2,000 | 1,200 | 400 | 8204.000 | – | – | 8640.007 | 8640.031 |
| 2,000 | 400 | 500 | 8405.000 | – | – | 8640.001 | 8640.032 |
| 2,000 | 600 | 500 | 8605.000 | – | – | 8640.002 | 8640.032 |
| 2,000 | 800 | 500 | 8805.000 | – | – | 8640.003 | 8640.032 |
| 2,000 | 1,000 | 500 | 8005.000 | – | – | 8640.005 | 8640.032 |
| 2,000 | 1,200 | 500 | 8205.000 | – | – | 8640.007 | 8640.032 |
| 2,000 | 400 | 600 | 8406.000 | – | – | 8640.001 | 8640.033 |
| 2,000 | 600 | 600 | 8606.000 | 8452.000 | 8840.120 | 8640.002 | 8640.033 |
| 2,000 | 800 | 600 | 8806.000 | 8450.000 | 8840.100 | 8640.003 | 8640.033 |
| 2,000 | 1,000 | 600 | 8006.000 | – | – | 8640.005 | 8640.033 |
| 2,000 | 1,200 | 600 | 8206.000 | 8451.000 | – | 8640.007 | 8640.033 |
| 2,000 | 600 | 800 | 8608.000 | – | 8840.130 | 8640.002 | 8640.034 |
| 2,000 | 800 | 800 | 8808.000 | – | 8840.110 | 8640.003 | 8640.034 |
| 2,000 | 1,200 | 800 | 8208.000 | – | – | 8640.007 | 8640.034 |
| 2,200 | 600 | 600 | 8626.000 | – | – | 8640.002 | 8640.033 |
| 2,200 | 800 | 600 | 8826.000 | – | – | 8640.003 | 8640.033 |
| 2,200 | 1,200 | 600 | 8226.000 | – | – | 8640.007 | 8640.033 |
